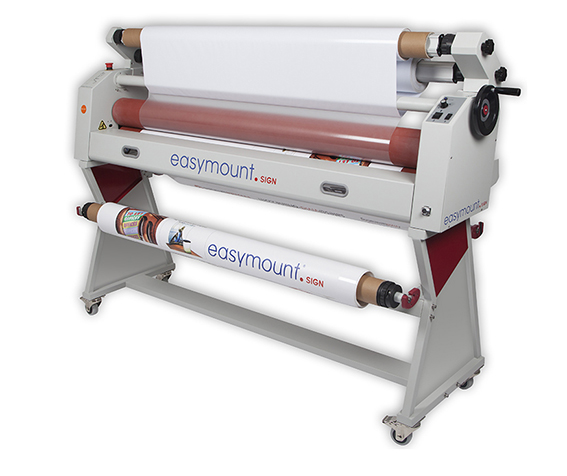

Easymount Sign 1600 Cold

Easymount Sign 1600 Cold

orCall +44 0191 567 4410

Description

An easy-to-use laminating system with self gripping mandrels and a flip down feed tray. The Easymount Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet. Up to 5m/16ft a minute 25mm / 1″ mounting thickness Variable speed control Integral media take-up unit Self gripping mandrels Magic eye safety feature Single lift mechanism Heavy duty construction Release liner take-up Large rollers Handy reverse mechanism Foot pedal

Specifications

ConditionNew
Laminating speed (m/min / feet/min)5 / 16
Max. width (mm / inches)1620 / 64
Mounting thickness (mm / inches)25 / 1
Roller diameter (mm / inches)130 / 5
Warm-up time (mins)
Hot roller heater system
Laminating temperature range (°c/°f)– / –
Control panel
Pressure adjustmentManual
Film core (mm / inches)77 / 3
Power supply ac (v, 50hz)220/240
Power supply ac (v, 60hz)110
Power supply required (amps)
Power consumption (w)38
Dimensions – width (mm / inches)2046 / 81
Dimensions – depth x height (mm / inches)550 x 1365 / 22×54
Gross machine weight (kg / lbs)156 / 344
