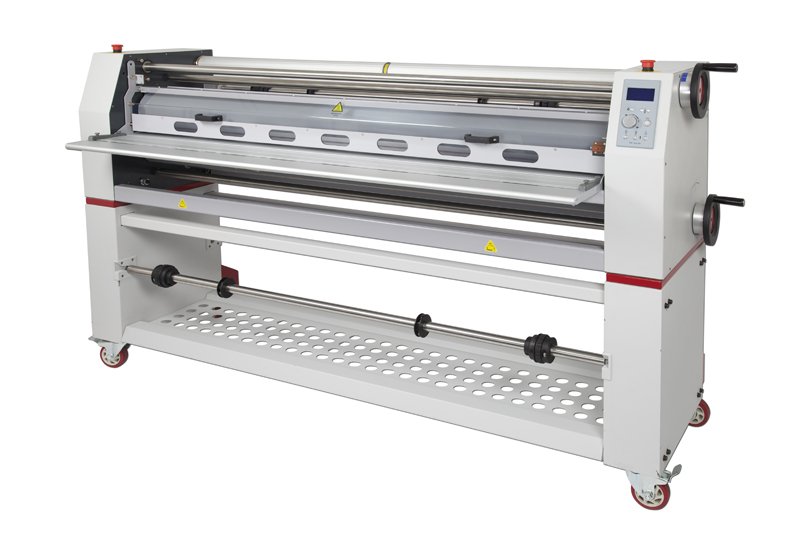

Easymount EM-1650DH Wide Format Laminator

Easymount EM-1650DH Wide Format Laminator

orCall 01915674410


The 1650 DH gives you total flexibility to Mount, Laminate and Encapsulate New LCD control panel, now with multi language including French, Spanish, Italian and German Hot and cold mounting, laminating and encapsulating Double hot rollers Mount and laminate simultaneously Large rollers for even pressure Variable speed control ` Foot pedal


ModelEM 1650 DH
Laminating speed (m/min / feet/min)3.9 / 13
Max. width (mm / inches)1650 / 65
Mounting thickness (mm / inches)25 / 1
Roller diameter (mm / inches)130 / 5
Warm-up time (mins)15
Hot roller heater systemInternal Infrared
Laminating temperature range (°c/°f)0-130 / 32-266
Control panelDigital
Pressure adjustmentManual/Gauge
Film core (mm / inches)75 / 3
Power supply ac (v, 50hz)220/240
Power supply ac (v, 60hz)240
Power supply required (amps)
Power consumption (w)5150
Dimensions – width (mm / inches)2170 / 85
Dimensions – depth x height (mm / inches)785×1255 / 31×49
Gross machine weight (kg / lbs)365 / 805
