Easymount Sign 1400 Hot

Easymount Sign 1400 Hot

orCall 01915674410

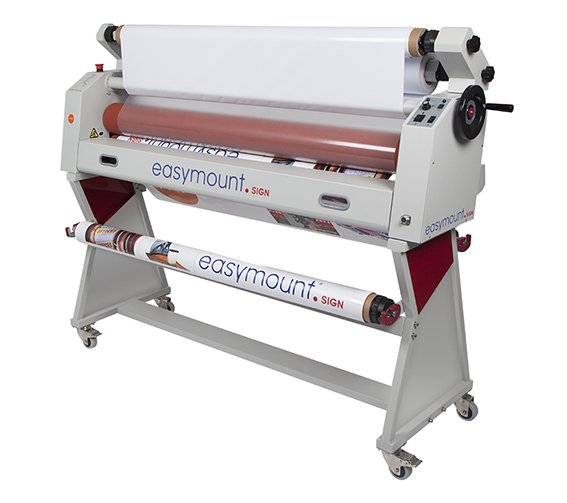

This Easymount Sign laminator is designed to perform and built to last, with its solid heavy duty construction. An easy-to-use laminating system with self gripping mandrels and a flip down feed tray. The Easymount Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet. Key Features Up to 5m/16ft a minute 25mm / 1″ mounting thickness Variable speed control Integral media take-up unit Self gripping mandrels Magic eye safety feature Heated roller Single lift mechanism Heavy duty construction Release liner take-up Large rollers Handy reverse mechanism Foot pedal


ModelSign 1400
Laminating speed (m/min / feet/min)5 / 16
Max. width (mm / inches)1420 / 56
Mounting thickness (mm / inches)25 / 1
Roller diameter (mm / inches)130 / 5
Warm-up time (mins)
Hot roller heater system
Laminating temperature range (°c/°f)0-45 / 32-113
Control panelLED
Pressure adjustmentManual
Film core (mm / inches)77 / 3
Power supply ac (v, 50hz)220/240
Power supply ac (v, 60hz)110
Power supply required (amps)
Power consumption (w)1000
Dimensions – width (mm / inches)1846 / 73
Dimensions – depth x height (mm / inches)550 x 1365 / 22×54
Gross machine weight (kg / lbs)136 / 300
Warranty1 Year*
