JBI Alpha-Doc Including 3:1 & 2:1 Wire Punch Dies


JBI Alpha-Doc Including 3:1 & 2:1 Wire Punch Dies

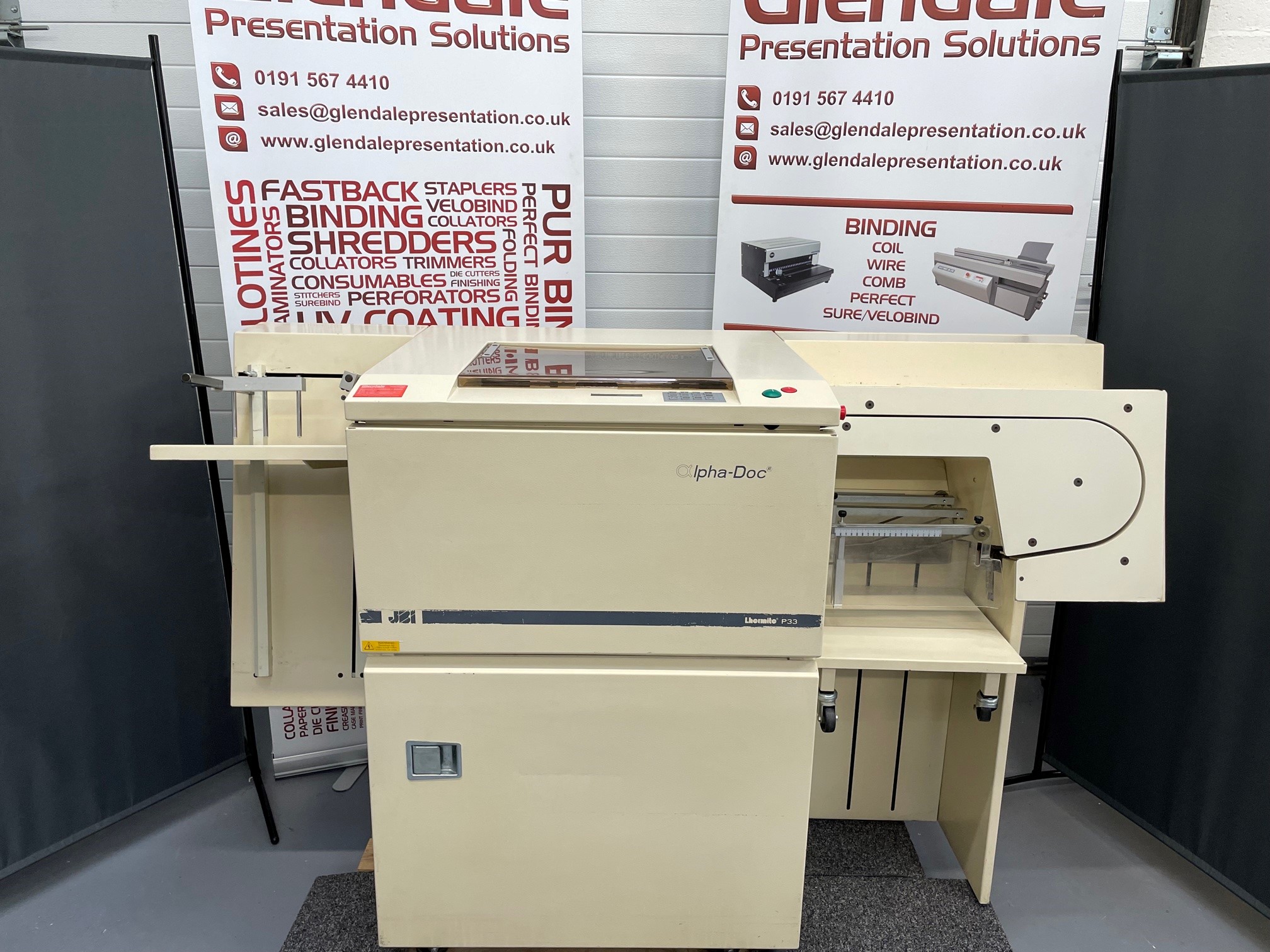

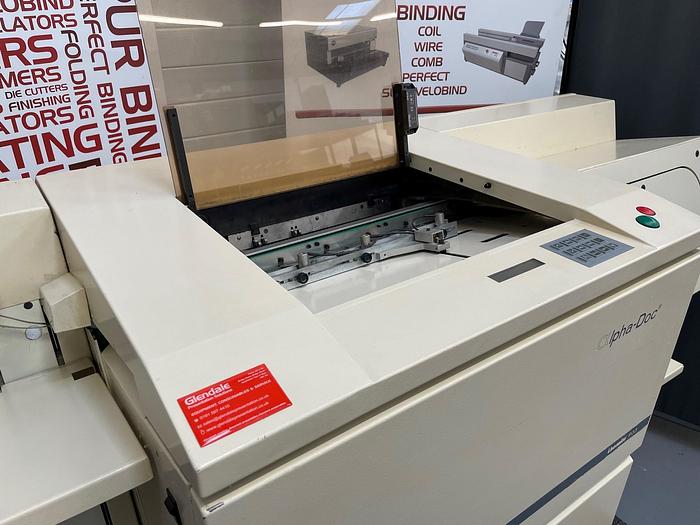

Reconditioned Alpha-Doc Automatic Punch inclusive of 3:1 & 2:1 Wire Punch Dies New RRP £31650.00 Glendale Offer Price £POA The JBI Alpha-Doc is an automated punching solution for mid to high volumes. This machine is in good condition. It has just been serviced by JBI trained engineers and is inclusive of a 3:1 & 2:1 Pitch wire punching dies.

The JBI Alpha-Doc combines versatility and ease with the production requirements of an on-demand automatic punch. Simply load the reception tray, press start and walk away.

The Alpha-Doc will punch up to 48,000 sheets per hour. Paper is jogged from three sides to make sure that holes are perfectly aligned ready for binding. The Alpha-Doc has a unique turnover device which keeps pre-collated work in the correct order for the binding process. The feeder has capacity for 6 reams, as does the reception tray. The reception tray automatically lowers to the ground and is on castors for ease of movement.

Settings are controlled by the touch key panel for size format, speed, punch capacity and stock type. Sheet pick up and punch capacity can be programmed from 0.5-1.0mm. The Alpha-Doc will effortlessly punch stock from 70gsm to 300gsm, including laminated print media.

All standard UK and US paper sizes are pre-programmed, with the addition of a further 4 custom setting available for you own requirements.

Various punch dies are available including Wire, Coil, Comb, Strip and 2/4 Hole. Dies can also be made to order for job specific requirements. ;


Max sheet size330mm x 330mm
Min sheet size138mm x 138mm
Sheet pick upVariable 0.5mm - 1.0mm
Punch speed80 strokes per minute
Paper weight70gsm - 300gsm
Dimensions(H)1100mm x (W)1790mm x (D)710mm
Machine weight350kg
Power requirement220/240v 50Hz
