IDEAL 6655 Guillotine

IDEAL 6655 Guillotine

orCall +44 0191 567 4410

Description

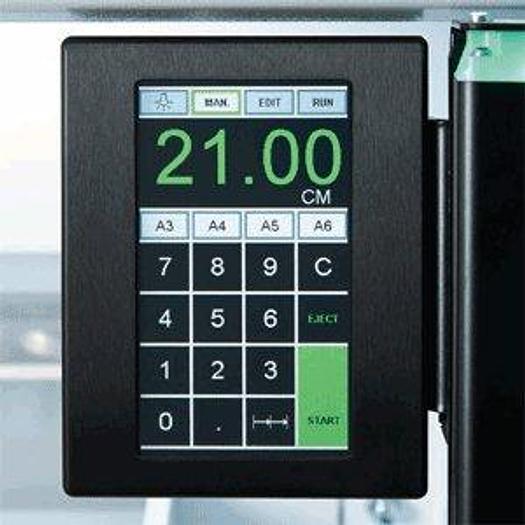

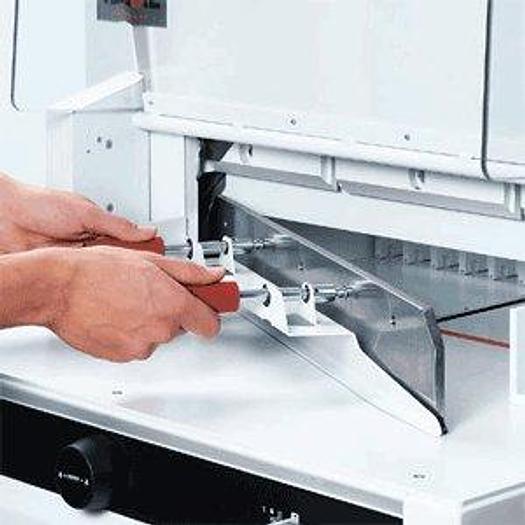

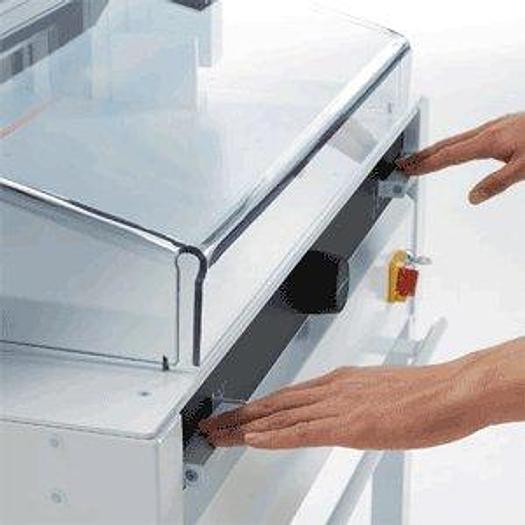

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. ComprehensiveSCS safety package: hinged, electronically controlled safety guard on the front table;safety cover on the rear table; main switch and safety lock with key; electronically controlledtrue two-hand operation; 24 volt controls (low voltage); patentedsafety drive; automatic bladeand clamp return from every position; disc brake for instant blade stop; blade changing devicewith covered cutting edge; blade depth adjustment from the outside of the machine;easy bladeand cutting stick change from the front of the machine without removing covers. Electric backgaugedrive with touch pad for easy setting, multilingual operator guidance and digital display.Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programswith 99 steps in each program (up to 15 repeat cuts can be integrated into a program as onesingle program step). Program runs automatically. 10-button key pad for presetting of measurement.Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeatcuts. Automatic SET function for referencemeasurement via start button. ProgrammableEJECT function – for pushing out the paper. Self-diagnostic system with error indication ondisplay. Electronic hand wheel for manual backgauge positioning with infinitelyvariable speedcontrol(from very slow to very fast). Electro-mechanical blade and clamp drive. Blade madeof German high quality steel. Solid steel blade carrier and adjustable blade guides.Adjustable backgauge with narrow separations and plastic gliders. Optical cutting line with brightand durable LEDs. Two side lays each on front and rear tables. Solid all-metal construction.Complete with stand, storage shelf, practical tool holder and stacking angle. Optional set of sidetables available at an extra cost.

Specifications

ConditionNew
Cutting length650 mm
Cutting height80 mm
Narrow cut25 mm
Table depth610 mm
Power supply (other voltages available)230 Volt / 50 Hz / 1~
Motor performance (input capacity)1,42 kW
DimensionsH 1293 x W 992 x D 1220 mm
Dimensions with side tablesH 1293 x W 1565 x D 1220 mm
Weight302 kg
Weight with side tables311 kg
