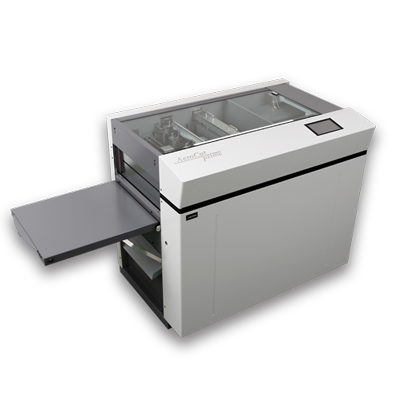

AeroCut Prime

AeroCut Prime

orCall +44 0191 567 4410

Description

The AeroCut Prime is the top-end slitter/cutter/creaser. Creasing Unit. The rule & matrix creaser on the AeroCut Prime allows the machine to offer world-class creases on digitally printed stocks. Creasing pressure can be adjusted in 5 levels instantly by shifting the lever. Slitting / Cutting Units The AeroCut Prime features 2 single blade slitters to trim top & bottom margins of sheets, and 2 double blade slitters, bleed centre gutters and deflect wastes into a waste bin. The durable guillotine cuts stocks up to 400gsm in weight. All the slitter and guillotine blades are self-sharpening. Feeding Unit The AeroCut Prime feeds printed stocks one-by-one from the top of the ream on the feed tray. The air-suction top feed system feeds even coated stock precisely without damage. There are several features to ensure feeding several weights and qualities of stocks every time. Intuitive operation The built-in 7″ touch screen allows operators to set job programmes and run the machine intuitively and instantly. Features 370mm x 900mm sheet size Takes up to 400gsm stock 268 preset jobs 150 customised jobs Wi-Fi connectivity Control direct from PC or MAC 22,500 business cards single cuts with options 1,260 centre crease A3 leaflets Score, Operation 5 inch colour touch-panel, Job memories 263 pre-set jobs, 100 + 50 memories, Feeding system Air blow + Upper belt suction feed, Cut mark register + Skew adjustable, Double feed detection

Specifications

ConditionNew
Basic functionsSlitting, Cross cutting, Creasing, Cross Perforation, Micro perforating
Capacity100 mm
In-feed paper size width210 – 365 mm
Length50 mm
Min. finished size width55 mm
Paper weight120 – 400 gsm
Speeds 189 business cards9 x SRA3 spm*
60 x a5 greetings cards15 SRA3 spm*
22 x a4 4pp leaflets21 SRA3 spm*
<i>*spmsheets per minute</i>
Feeding unitIonizer
Optional25 up card cutting module
DeliveryDelivery conveyor capable of
Delivering finished productsup to 680mm in length.
Dimensions1.177(W) x 770(D) x 1,070(H) mm
Footprint2,018(W) x 770(D) x 1540(H) mm
Net weight260 kg
Power supply200 – 240 VAC 50/60Hz 2.0 – 1.7A 400W</html>
