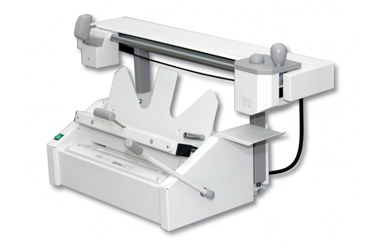

Fastbind Elite XT
No longer available
Fastbind Elite XT
Description
Fastbind Elite XT binding machine offers the largest flexibility. It quickly produces hard and soft cover books as well as Manager covers, tear-off pads etc.
Fastbind Elite XT can bind books up to SRA3 size or A4 landscape. This is ideal for print/copy shops, binderies, school yearbooks and photographers. The end result is a strong, square and affordable perfect bound book.
Flexible binding system
Easily binds up to SRA3 format
Dust free spine roughening
Compact and fully featured
Roughener – PGO
Fastbind Elite features the exclusive Paper Grain Opening (“PGO”) system. Unlike other spine rougheners that grind the spine creating lots of noise and dust, the PGO opens the paper grain with very little noise and there is no paper dust! The operator can control the number of PGO passes that need to be made to ensure a solid bind
Easy to use
It’s easier to learn than an office copier! Anyone can be making professional quality books and reports in minutes. There are no set-up times or book format adjustments. It self adjusts for book thickness from 2 to 400 pages.
Design and specifications are subject to change without prior notice.
Specifications
Manufacturer | Fastbind |
Model | Elite XT |
Condition | New |
Capacity cycles/hour | Up to 450 Up to 450 |
Capacity books/hour* | Up to 180 Up to 180 (* Production time depends on operator) |
Min-max binding thickness | 0.004–1.6˝ 0.1–40 mm |
Max. binding length | 17.9˝ 455 mm Max. |
Min-max binding height | 5.5″/12.6″ 140/320 mm |
Max cover thickness | ** 225 index 400 g/m² (** Depending on specification of material) |
Voltage | 110–115 V 220–240 V |
Frequency | 50–60 Hz 50–60 Hz |
Current | 6A 3 A |
Machine dimensions (w x d x h) | 41.3˝ x 20.5˝ x 22.4˝ 1050 x 520 x 570 mm |
Box dimensions (w x d x h) | 45.3″ x 24″ x 27.2″ 1150 x 610 x 690 mm |
Net/gross weight | 115.1/154.3 lbs 52.2/70 kg |
