IDEAL 4815 Guillotine

IDEAL 4815 Guillotine

orCall +44 0191 567 4410

Description

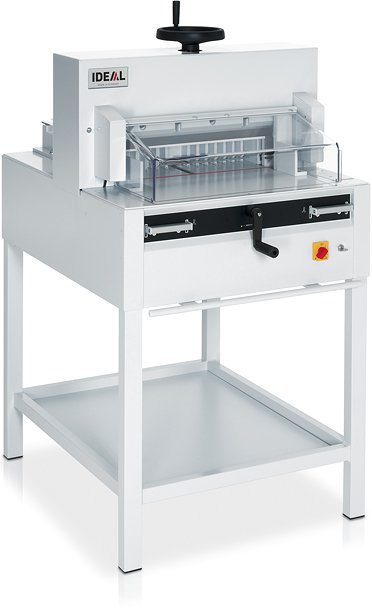

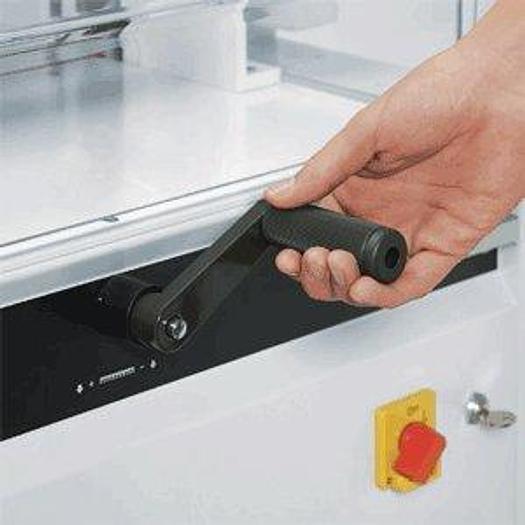

IDEAL 4815 Powerful guillotine with electro-mechanical blade drive, manual spindle clamp and EASY-CUT 475 mm cutting length The IDEAL 4815 is a power guillotine which retains the manual clamp positioning of simpler machines to avoid unnecessary complexity. A measuring wheel at the front table positions the back gauge according to the easy to read measuring scale. Side lays at the front ensure that the stack is positioned correctly, even for the smallest piles. Solingen steel blade is made for durability. Cutting height adjustment and cutting stick replacement are from outside the guillotine. Comprehensive package of safety features prevent accidents.

Specifications

ConditionNew
Cutting length475 mm
Cutting height80 mm
Narrow cut30 mm
Table depth458 mm
Power supply (other voltages available)230 Volt / 50 Hz / 1~
Motor performance (input capacity)1.1 kW
DimensionsH 1410 x W 762 x D 1053 mm
Dimensions with side tablesH 1410 x W 1349 x D 1053 mm
Weight212 kg
Weight with side tables221 kg
