Description

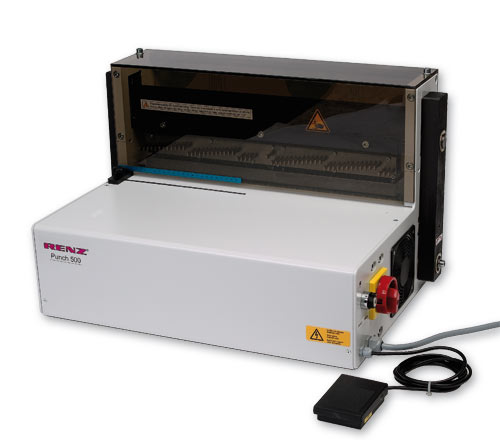

The Renz Punch 500 is a very heavy-duty, professional punch machine. Very versatile, for all types of book and calendar punching production. Punching dies for all types of ring wire, plastic comb, coil and calendars Bespoke professional dies for the Punch 500 ES or Punch 500 HD are available on request Fast die changes 2-part split dies for book and calendar work QSA (Quick Size Adjustment) for high flexibility of different paper formats(1) Punch a wide range of mixed stocks Horizontal paper feeding Punch dies available: 3:1, 2:1 ring wire, calendar, coil, plastic comb.

Specifications

ConditionNew
Mechanical cycles per hour3,000
Min. punching width60 mm
Max. punching width500 mm
Min. unpunched length60 mm
Max. unpunched length800 mm
Max. punching thickness3,6 mm (1)
Punching operationFoot pedal
Die typeStandard
Selectable punch pins (qsa)Yes
Bespoke diesNo
Variable margin depthNo
Die changeover time3 min
Machine dimensions l x w x h670 x 450 x 400 mm
Machine weight110 kg (2)
Machine packing dimensions l x w x h900 x 670 x 680 mm
Machine weight with packing172 kg (2)
Power requirement3/N/PE~400/230V 50Hz / 3,5kW, 3/PE~200/115V 60Hz / 3,5kW
