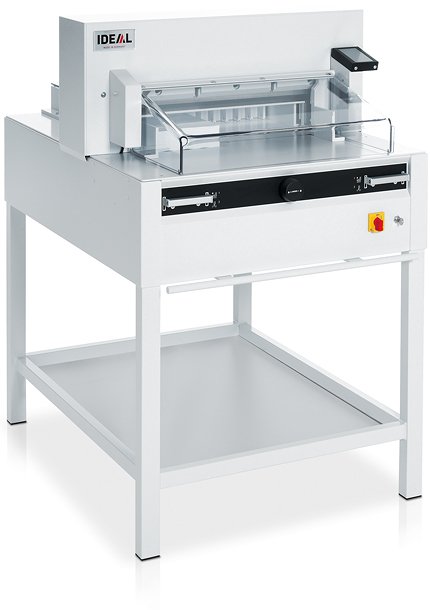

Ideal 5255 Guillotine

Ideal 5255 Guillotine

orCall +44 0191 567 4410

Description

Our print finishing equipment range offers the Ideal 5255 Guillotine which is equipped with the new, patented EASY-CUT blade with activating bars for convenient and safe cutting . Its ergonomic working height of 94 cm will guarantee effortless and fatigue-free operation. Its electric backgauge drive with touch pad is great for easy setting, multilingual operator guidance and digital display. The Ideal 5255 Guillotine comprehensive SCS safety package includes: hinged, electronically controlled safety guard on the front table; a safety cover on the rear table; main switch and safety lock with a key; an electronically controlled true two-hand operation; low voltage 24 volt controls; a patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stopping; blade changing device with a covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing the covers. Features of the Ideal 5255 Guillotine: Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button. Programmable EJECT function – for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual back gauge positioning with infinitely variable speed control (from very slow to very fast). Electro-mechanical blade and clamp drive. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Adjustable backgauge with narrow separations and plastic gliders. Optical cutting line with bright and durable LEDs. Two side lays each on front and rear tables. Solid all-metal construction. Complete with stand, storage shelf, practical tool holder and stacking angle. Product Specifications

Specifications

ConditionNew
Cutting length520 mm
Cutting height80 mm
Narrow cut35 mm
Table depth520 mm
Power supply (other voltages available)230 Volt / 50 Hz / 1~
Motor performance (input capacity)1.42 kW
DimensionsH 1293 x W 860 x D 1120 mm
Dimensions with side tablesH 1293 x W 1436 x D 1120 mm
Weight252 kg
Weight with side tables261 kg
