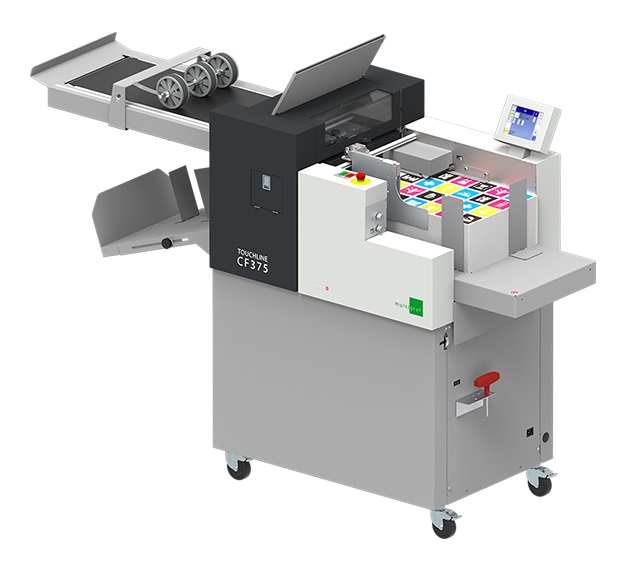

Multigraf Touchline CF375 Creaser Folder

Multigraf Touchline CF375 Creaser Folder

orCall 01915674410


The MultiGraf Touchline generation offers more flexibility and automation than any other product in its class. The creaser/folder Touchline CF375 handles paper stocks up to 400 gsm, creases and folds the products, all in one single pass. It employs the unique Multigraf Swing-Bar™ System for creasing without cracking. The sheets don’t stop during the creasing process. The automated setup of the crease depth with different positions is another fantastic feature of the Multigraf Touchline CF375. This new technology allows for the speeding up of the creasing process with an accuracy of 0.1 mm. By using this technology, the Multigraf Touchline CF375 runs at a consistent speed of more than 6000 A4 sheets per hour, regardless of the number of creases and folds applied.

Specification: Top-fed vacuum-belt pile-feeder

Double sheet detection Multigraf Swing-Bar creasing system Touchscreen control Crease & folds up to 6,000 sheets an hour Three configurations: creaser-folder / folder / perforator Shingle delivery Max sheet size 375 x 650 mm, 375 x 1050mm with table extension Min sheet size 105 x 148 mm Max paper weight 400 gsm Min paper weight 80 gsm Paper size maximum: 375 x 660 mm. With table extension: 375 x 1,050 mm


ModelTouchline CF375
Paper size minimum105 x 148 mm
Paper size maximum375mm x 660mm or 375mm x 1050mm
Paper stocks80 -400 gsm or max. 0.4 mm*
SpeedUp to 6,000 per hour
Control panelTouchscreen - Icon based
Feeder systemSuction feeder
Feeder capacity180mm
Creasing systemMultigraf Swing-BarTM
Fold systemMultigraf Pro-KnifeTM
Number of fold knifes2
Fold length minimum30 mm
Minimum crease distance30 mm
Fold length maximum500 mm
Delivery belt length820 mm
Crease depths 3 with automatic setups
Crease styles2, with quick change over in seconds
Reception tray height120 mm
Electrical connection240v 50/60 Hz
Dimension(L)1880mm (W)610mm (H)1320mm
