IDEAL 5560LT Guillotine

IDEAL 5560LT Guillotine

orCall +44 0191 567 4410

Description

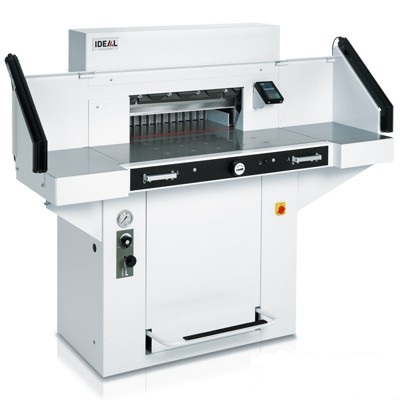

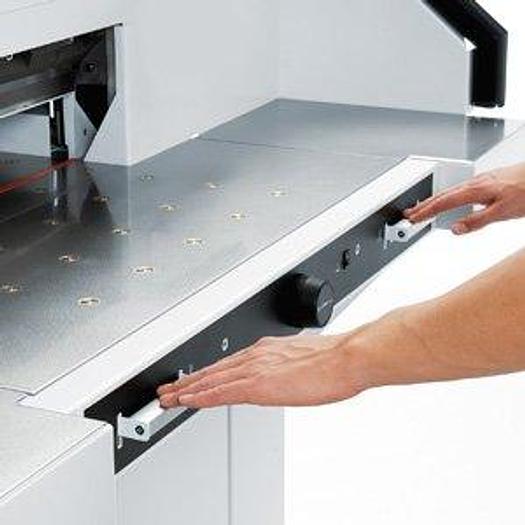

The Ideal 5560lt is a highly professional guillotine with a hydraulic blade & clamp drive, with touch pad and infra red light beam for safety. Taking command of some of the latest technological developments in the guillotine industry, the 5560lt guillotine is far superior to many of its similar commercial models. What sets the 5560lt apart is the hydraulic operation of the knife and clamp system, enabling precise cuts and adjustments while maintining the finish of the print and reducing the chance of damage. It is ideal for digital paper stocks, with similar models struggling in this area. Features of the 5560 LT Guillotine: Cutting length – 550mm Cutting height – 95mm – 92mm with false clamp Narrow cut – 32mm – 60mm with false clamp Table depth – 570mm Power back gauge IR safety curtain Hydraulic cut Hydraulic clamp Touch pad programming Optional side tables

Specifications

ConditionNew
Cutting length550 mm
Cutting height95 mm
Narrow cut32 mm
Table depth570 mm
Narrow cut with false clamp installed60 mm
Power supply (other voltages available)230 Volt / 50 Hz / 1~ (other voltages available)
Motor performance (input capacity)1,5 kW
DimensionsH 1260 x W 1560 x D 1067 mm
Dimensions with side tablesH 1260 x W 1630 x D 1067 mm
Weight369 kg
Weight with side tables386 kg
