Duplo DF-870

Duplo DF-870

orCall 01915674410

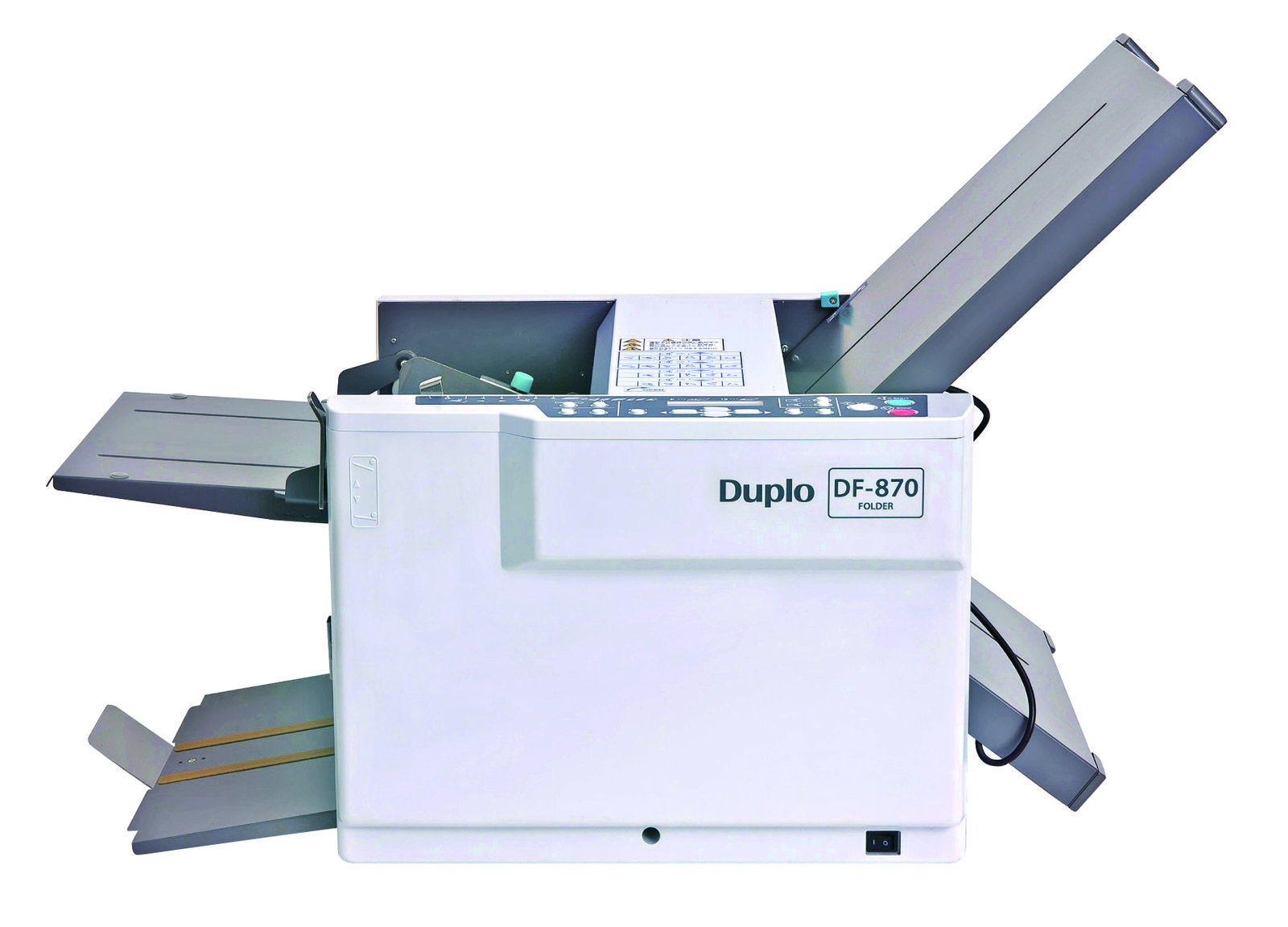

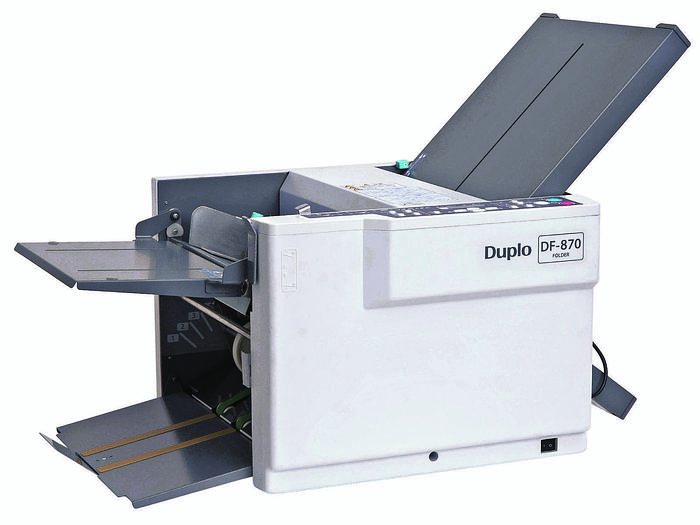

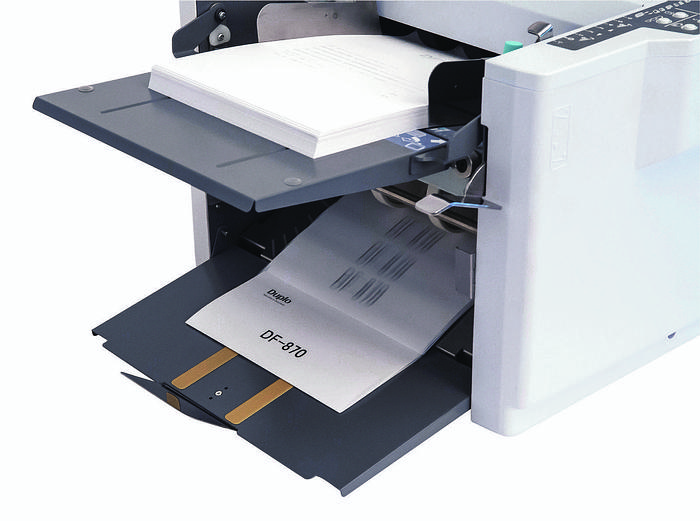

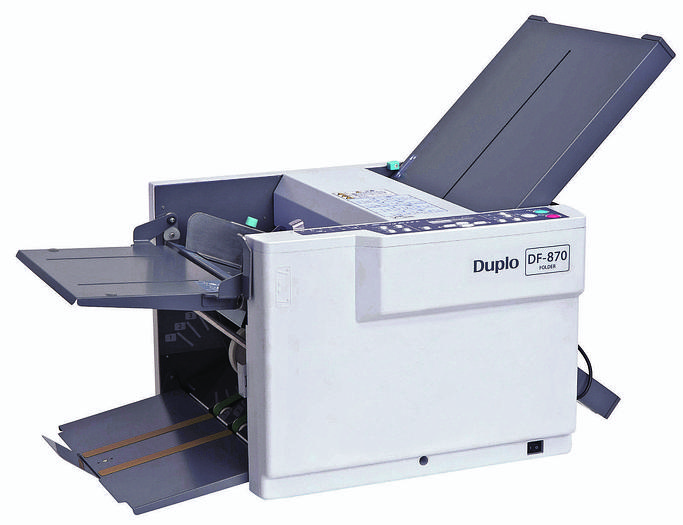

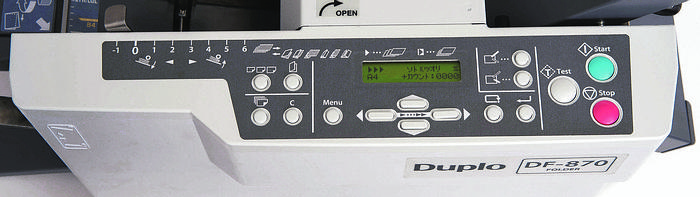

The DF-850 and DF-870 are the fastest table top folding solutions in their category, with a top speed of 241 sheets per minute. They are twice as fast as its predecessors and user friendliness is at the heart of the design of these folders, with features such as easy to use control panel, a batch mode and a reliable friction feeding mechanism, with up and down counter. The efficiency and productivity of the DF-850 and DF-870 results in both time and cost savings. Fold Styles The DF-870 is equipped with six pre-programmed folding modes: Single, Double, Irregular Accordion, Letter, Accordion and Gate Fold. It can also create Custom Fold and Cross Fold. These features ensure a huge level of flexibility Batch & Interval Functions You can set the pace of folding to suit yourself on the DF-879, with its batch mode and interval function. For long runs keep the machine running at continuous speed but with short pauses at set intervals to allow offloading without completly stopping


Model/typeDesktop-type DF-850

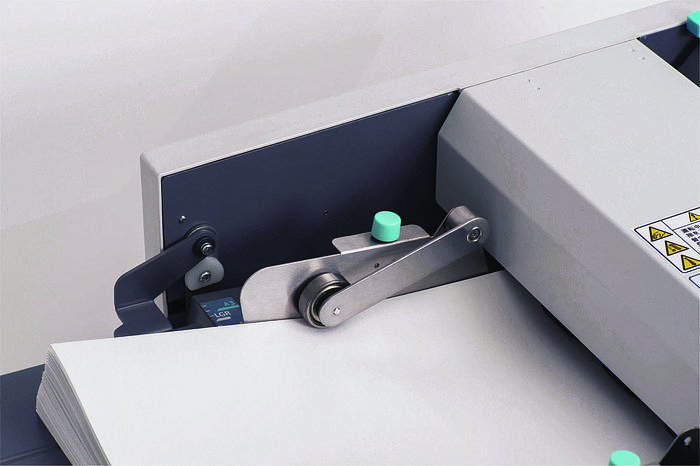

Feeding system3 rings automatic paper separation, Slant correction device
Folding modeSingle fold, Double fold, Irregular accordion fold, Letter fold, Accordion fold, Gate fold, Custom fold, Special cross fold (Fine quality paper 52.3 to 104.7gsm)
Loading capacity of paper feed500 sheets (Fine quality 64gsm)
Folding stopperManual setting
Stacker rollerManual setting 5 steps
Paper sizeMin.91 (W) x 128 mm(L) Max.297 (W) x 432 mm(L)
Paper typeFine quality paper(52.3 to 157gsm), Rough paper, medium quality paper, stencil paper, specific art paper and specific coated paper
Paper weightFine quality 52.3 to 157gsm
Speed(maximum)241 sheets/min(*1)
Power supplyAC 100-240V 50/60Hz
Power consumption1.3A – 0.65A
DimensionsIn use 900(W) x 480(D) x 535(H) mm
In storage620(W) x 480(D) x 535(H) mm
