Duplo DF-1300L Electric Suction Paper Folder

Duplo DF-1300L Electric Suction Paper Folder

orCall +44 0191 567 4410

Description

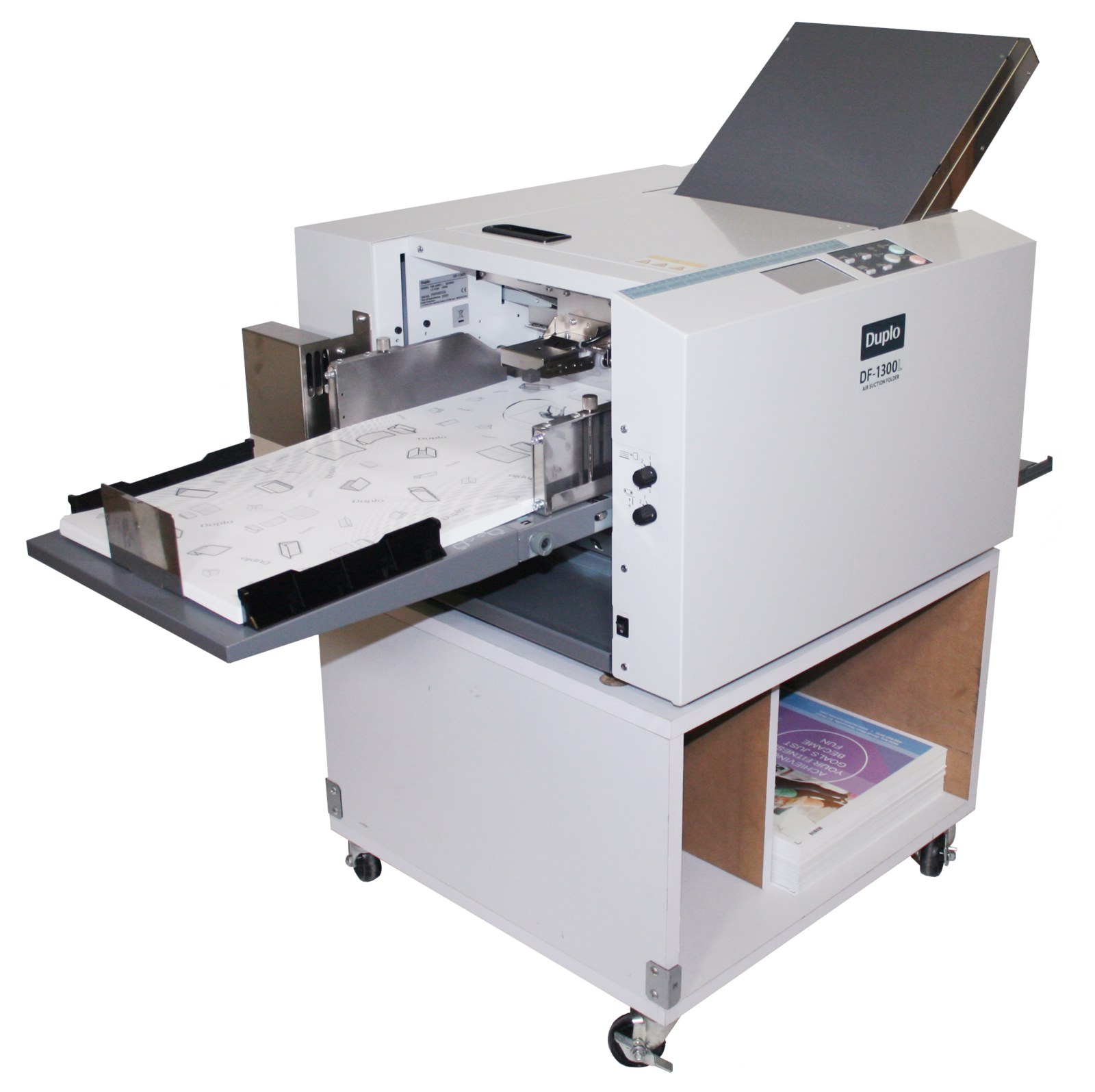

The DF-1300L is a compact folder that is unique in its class by supporting the folding of long A3 format sheets. This brings new opportunities for creative organisations, in-house printers and small digital print shops, to explore a wider variety of fold patterns and finished formats to attract and inspire their customers. A high degree of automation and ease-of-use through touch screen controls make this ideal for locations where print is not necessarily the main business, but there is a need to create printed documents using all the features available in the latest light production presses. The features of air suction feeding and ultrasonic double sheet detection in a very compact floorprint, all contribute to make this a perfect solution for folding digitally printed papers.

Specifications

ManufacturerDuplo
ModelDF-1300L
ConditionNew
Paper SizeMax 311x648mm. Min 120x182mm
Paper SizesA3/B4/A4/B5/A5/B6
Paper weightCoated Paper 70-160gsm. Single fold to 230gsm
Paper Feed Tray Capacity50mm
Feeding SystemBelt Air Suction with Side Air Fan
Double Feed DetectionUltrasonic and Optical
Job Memories30
Operator ControlsLCD Touch Screen & Button Control Panel
Folding SpeedMaximum 310 sheets per minute
Feeding ModesBatch Count with Interval Function
Machine dimensionsW-900 (1353mm in use) x D-587 x H-614
Power240v AC 50Hz 0.8A & Power Save Mode
Machine weight71kg
